Description
Package Includes:
(1) Terminator TNP212D2 1200 Watt Dual 12�� Subwoofers
(1)nbsp; RWK81 8 Gauge Complete Amp Installation Wire Kit with 100 % Copper
RCA
(1) RXC2D 2 Farad Stiffening Power Capacitor
Features for dual subs + box:

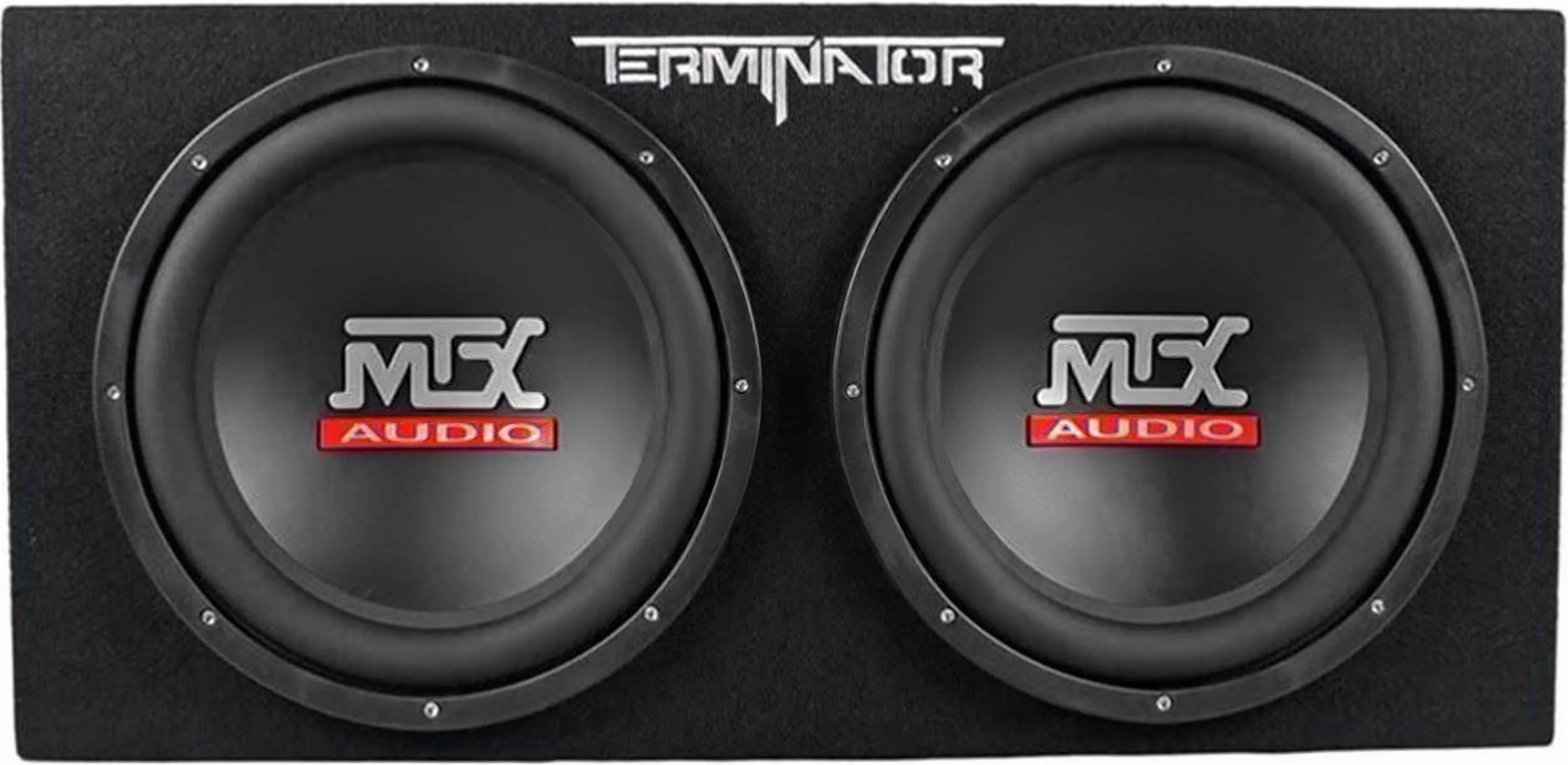

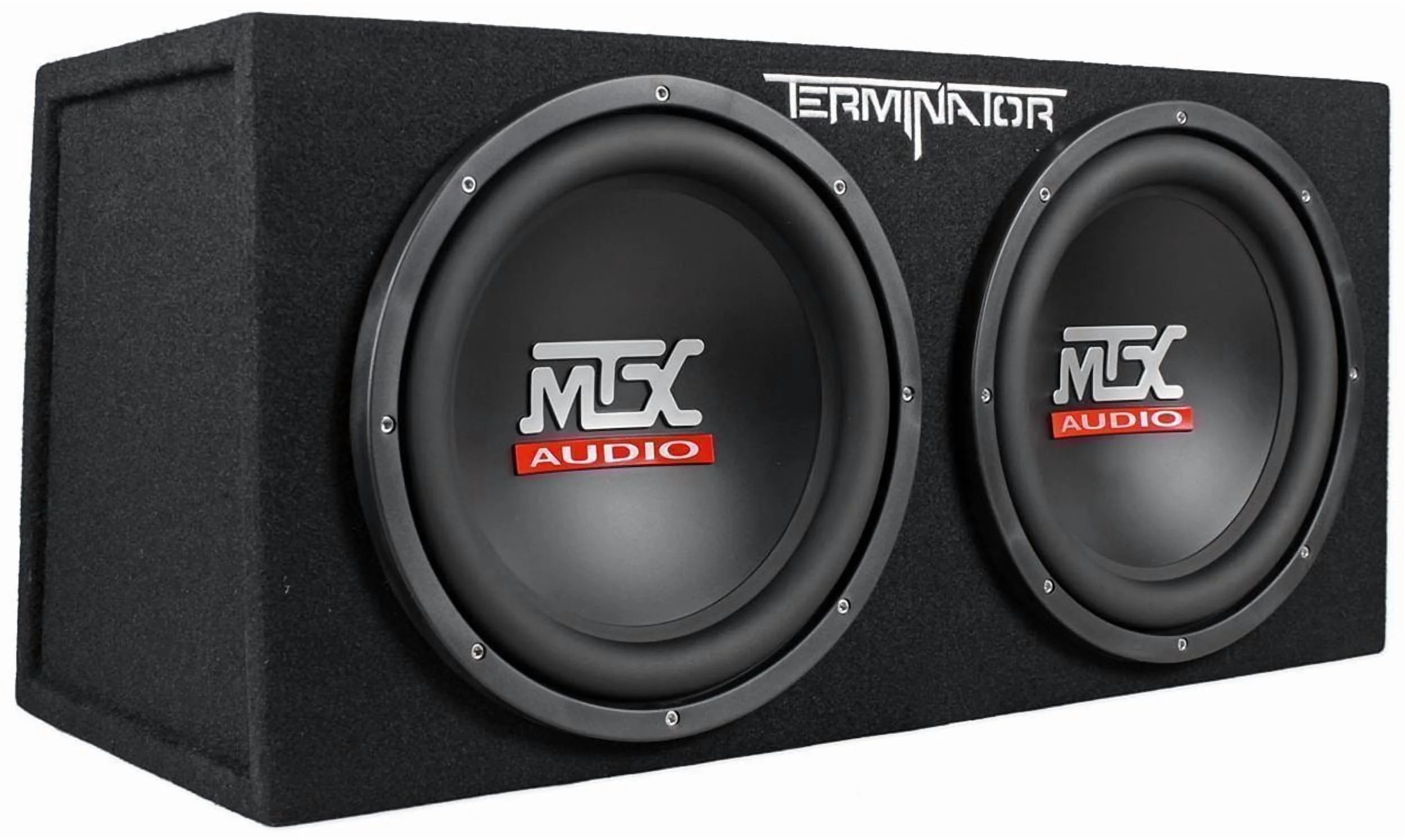

Dual Loaded 12quot; Subwoofer Enclosure
2 12quot; Terminator Series Subwoofers Included
1200 watts peak output
400 watts RMS
2quot; Aluminum voice coils
Single 4 ohm voice coils per sub (pre-wired down to a 2 ohm load)
Rubber Surround
Polypropylene Cone
Logo on Dustcap
48oz. Magnet
Frequency response: 37-150 Hz

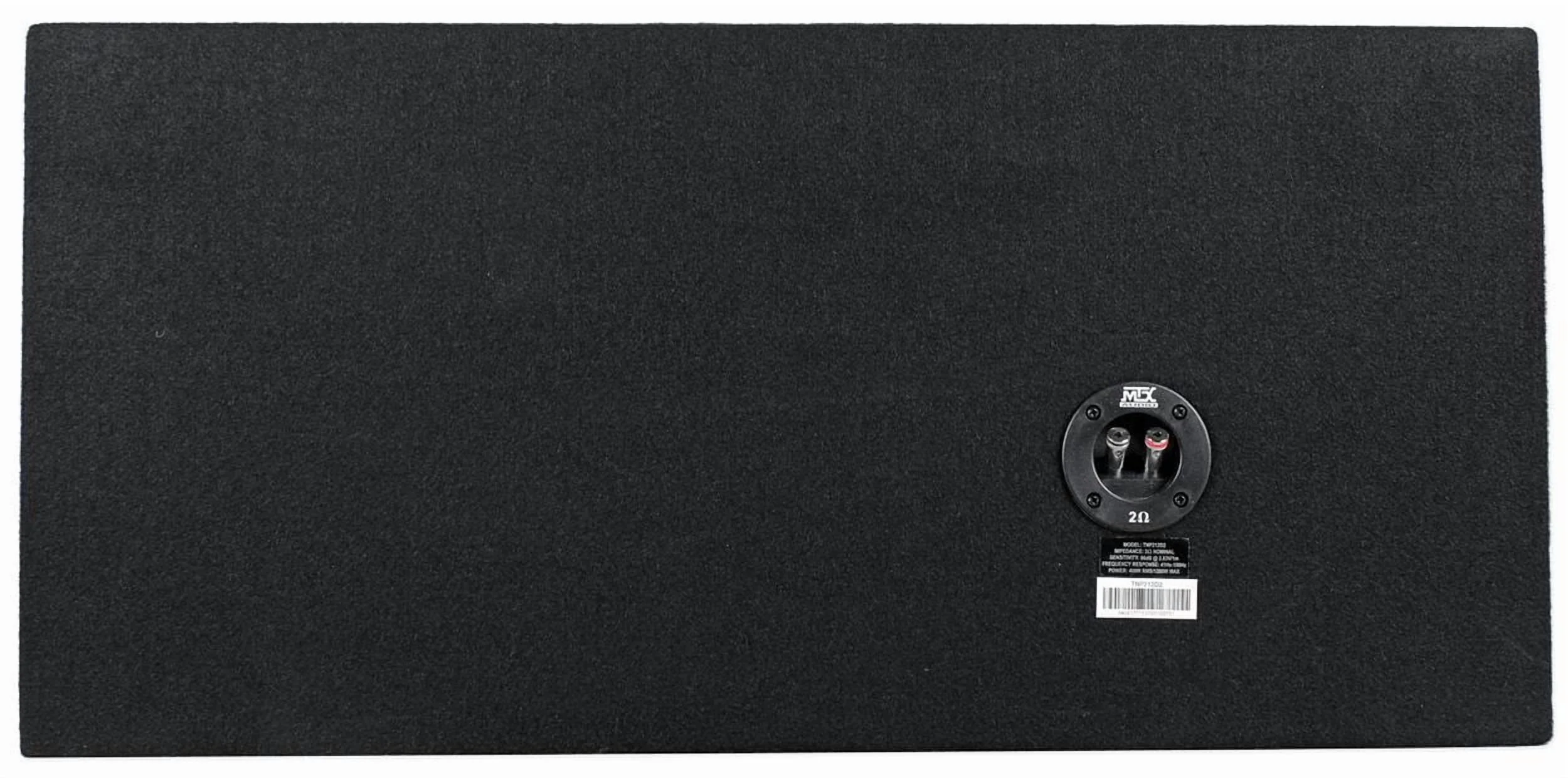

Dual 12quot; Sealed Sub Enclosure
5/8quot; MDF Solid Construction
Durable Black Carpeting
Stylish Logo in Carpet
Dimensions: 13.875quot;H x 29.625quot;W x 13.875quot; D
Amp Features:

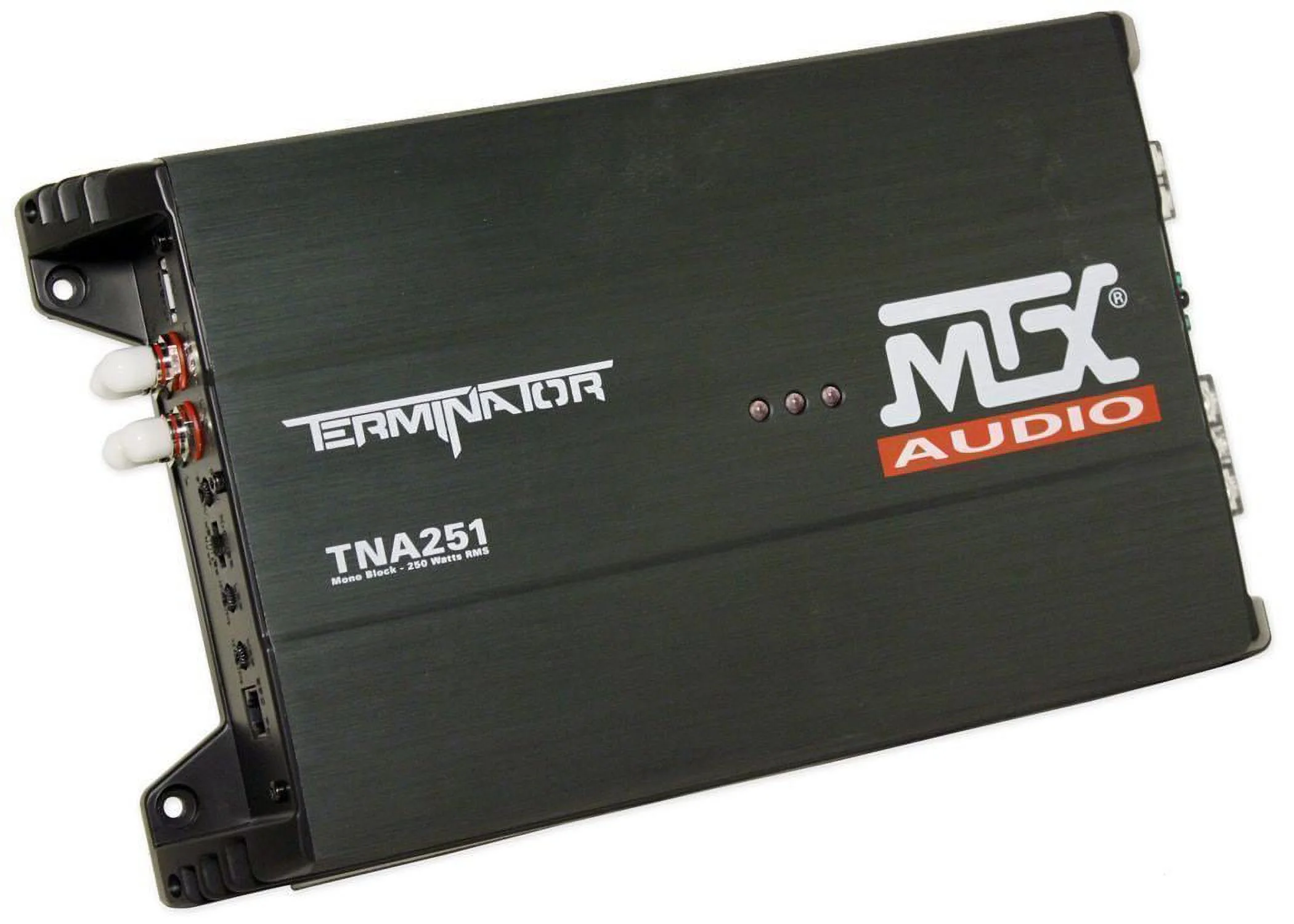

Terminator Series Class D Monoblock Car Amplifier
400 x 1 watts peak @ 2 omhs
200 x 1 RMS @ 2 ohms
LED power and protection indicators
Selectable bass boost (0, 6, 12 dB at 40 Hz)
Mono gain control
Smart engage auto turn-on circuitry
Built-in adaptive cooling fans
Built in low-pass filter (85 Hz, 18 dB/octave)
CEA-2006 compliant amplifier
Frequency response: 20-85 Hz
Dimensions: 13-1/16quot;L x 10-3/16quot;W x 2-1/4quot;H
8 AWG power and ground leads recommended
THD at Rated RMS Power: 1%
Signal-to-Noise Ratio: 73 dB
Fuse Rating: 25A x 1
Video of RXC2D:
Features:

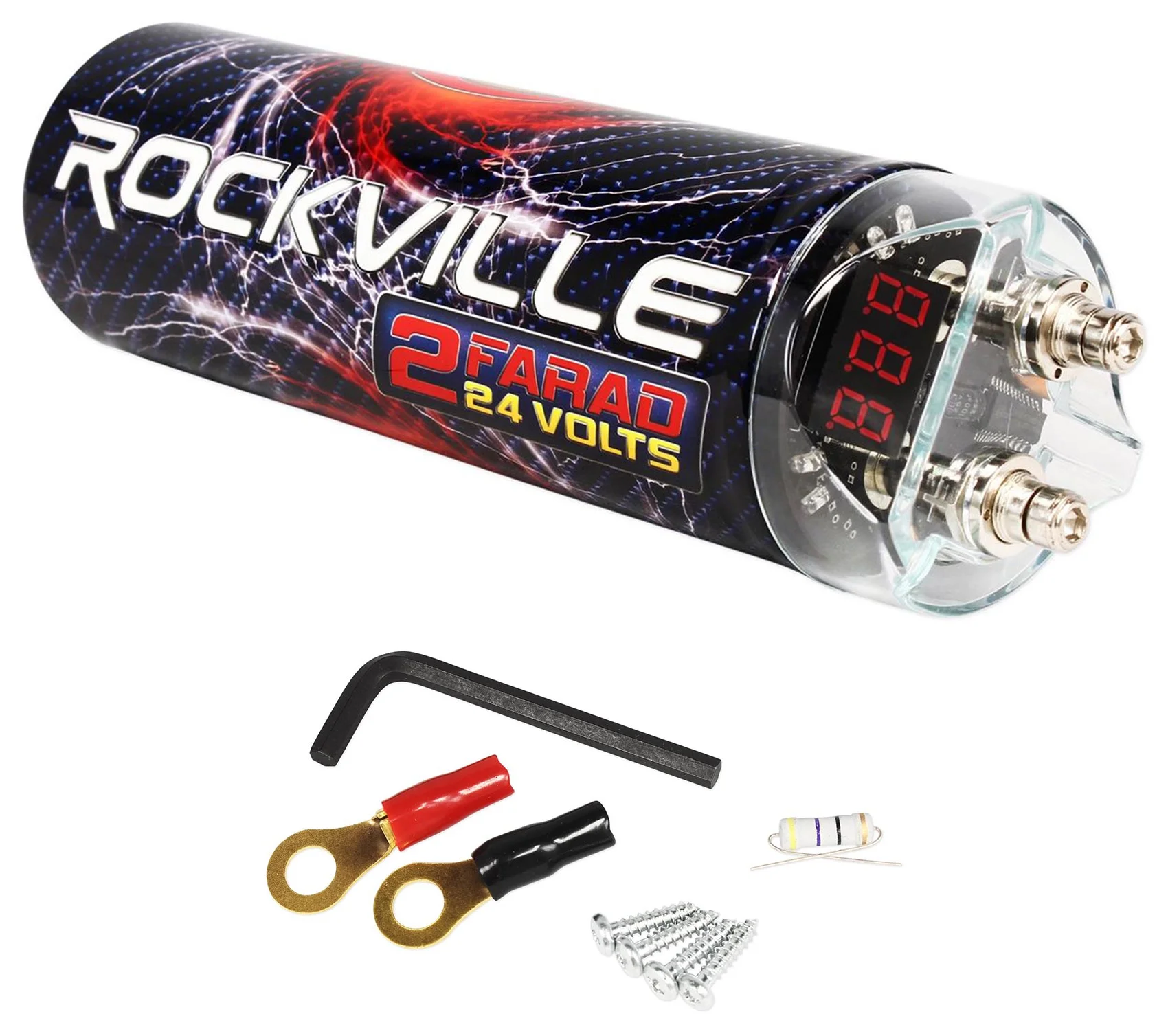

RXC2D 2 Farad Stiffening Power Capacitor
2 Farad/12 Volt Stiffening Capacitor with 24 Volt Surge Capacity
Lucite Encapsulated Display and Logic Circuitry.
Red LED Digital Voltage Display.
Blue Led Flashing Charge and Discharge Metering.
IC Controlled circuitry with negative polarity built-in protection.
Dimensions: 13quot; long x 3.75quot; wide x 7quot; high
Includes Clear Lucite Unbreakable Mounting Brackets, hardware and charging
resistor with instructions
Owner��s Manual
Video of RWK81:Features:
RWK81 8 Gauge 2 Channel Car Amplifier Wiring Installation Kit
(1) 17�� High Grade Twisted Pair of 100% Copper RCA Cable
17�� 8 Gaug Package Includes: (1) Terminator TNP212D2 1200 Watt Dual 12�� Subwoofers. (1) RWK81 8 Gauge Complete Amp Installation Wire Kit with 100 % Copper RCA. (1) RXC2D 2 Farad Stiffening Power Capacitor. Features for dual subs + box: Dual Loaded 12″ Subwoofer Enclosure. 2 12″ Terminator Series Subwoofers Included. 1200 watts peak output. 400 watts RMS. 2″ Aluminum voice coils. Single 4 ohm voice coils per sub (pre-wired down to a 2 ohm load). Rubber Surround. Polypropylene Cone Logo on Dustcap. 48oz. Magnet. Frequency response: 37-150 Hz. Dual 12″ Sealed Sub Enclosure. 5/8″ MDF Solid Construction. Durable Black Carpeting. Stylish Logo in Carpet. Dimensions: 13.875″H x 29.625″W x 13.875″ D. Amp Features: Terminator Series Class D Monoblock Car Amplifier. 400 x 1 watts peak @ 2 omhs. 200 x 1 RMS @ 2 ohms. LED power and protection indicators. Selectable bass boost (0, 6, 12 dB at 40 Hz). Mono gain control. Smart engage auto turn-on circuitry Built-in adaptive cooling fans. Built in low-pass filter (85 Hz, 18 dB/octave). CEA-2006 compliant amplifier. Frequency response: 20-85 Hz. Dimensions: 13-1/16″L x 10-3/16″W x 2-1/4″H. 8 AWG power and ground leads recommended. THD at Rated RMS Power: 1%. Signal-to-Noise Ratio: 73 dB. Fuse Rating: 25A x 1. Features: RXC2D 2 Farad Stiffening Power Capacitor. 2 Farad/12 Volt Stiffening Capacitor with 24 Volt Surge Capacity. Lucite Encapsulated Display and Logic Circuitry. Red LED Digital Voltage Display.. Blue Led Flashing Charge and Discharge Metering.. IC Controlled circuitry with negative polarity built-in protection.. Dimensions: 13″ long x 3.75″ wide x 7″ high. Includes Clear Lucite Unbreakable Mounting Brackets, hardware and charging resistor with instructions. Features: RWK81 8 Gauge 2 Channel Car Amplifier Wiring Installation Kit. (1) 17 High Grade Twisted Pair of 100% Copper RCA Cable. 17 8 Gauge Translucent Blue SuperFlex Power Cables 17 18 Gauge Blue Remote Cable. 17 16 Gauge Clear Speaker Wire. 3 8 Gauge SuperFlex Ground Wire. Gold Plated AGU Heat Resistant Fuse Holder. 60 Amp AGU Gold Plated Fuse. 7 Split Tube Loom. Accessories Included: Wire Ties, Ring Terminals, Butt Connectors, Spades, and Grommets. Soft abrasion proof insulating jacket allows for 100% improved flexibility. PVC outer jacket can with-stand an extreme temperature range of -40 to 220 degrees F
